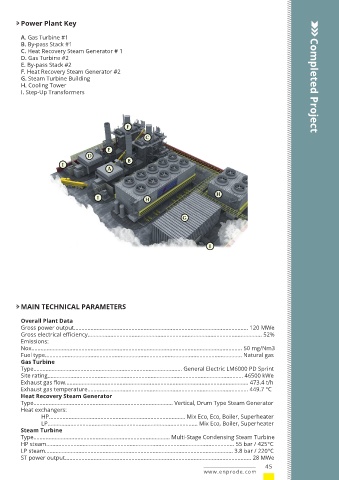

Power Plant Key

        A. Gas Turbine #1
        B. By-pass Stack #1
        C. Heat Recovery Steam Generator # 1
        D. Gas Turbine #2
        E. By-pass Stack #2
        F. Heat Recovery Steam Generator #2
        G. Steam Turbine Building
        H. Cooling Tower                                                                                      Completed Project
        I. Step-Up Transformers













































        MAIN TECHNICAL PARAMETERS

        Overall Plant Data
        Gross power output................................................................................................................... 120 MWe
        Gross electrical efficiency................................................................................................................... 52%
        Emissions:
        Nox........................................................................................................................................... 50 mg/Nm3
        Fuel type.................................................................................................................................. Natural gas
        Gas Turbine
        Type.................................................................................................. General Electric LM6000 PD Sprint
        Site rating................................................................................................................................. 46500 kWe
        Exhaust gas flow......................................................................................................................... 473.4 t/h
        Exhaust gas temperature.......................................................................................................... 449.7 °C
        Heat Recovery Steam Generator
        Type............................................................................................ Vertical, Drum Type Steam Generator
        Heat exchangers:
                HP.......................................................................................... Mix Eco, Eco, Boiler, Superheater
                LP................................................................................................... Mix Eco, Boiler, Superheater
        Steam Turbine
        Type.......................................................................................... Multi-Stage Condensing Steam Turbine
        HP steam............................................................................................................................ 55 bar / 425°C
        LP steam............................................................................................................................ 3.8 bar / 220°C
        ST power output........................................................................................................................... 28 MWe
