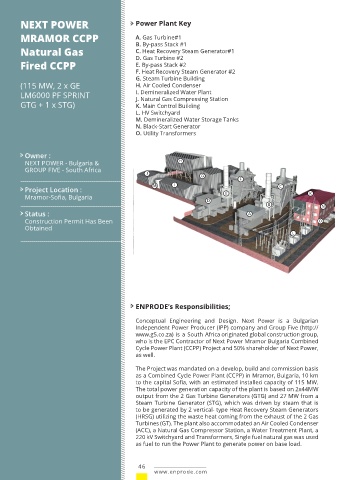

NEXT POWER                               Power Plant Key

        MRAMOR CCPP                              A. Gas Turbine#1
                                                 B. By-pass Stack #1
        Natural Gas                              C. Heat Recovery Steam Generator#1
                                                 D. Gas Turbine #2
        Fired CCPP                               E. By-pass Stack #2
                                                 F. Heat Recovery Steam Generator #2
                                                 G. Steam Turbine Building
        (115 MW, 2 x GE                          H. Air Cooled Condenser
        LM6000 PF SPRINT                         I. Demineralized Water Plant
                                                 J. Natural Gas Compressing Station
        GTG + 1 x STG)                           K. Main Control Building
                                                 L. HV Switchyard
                                                 M. Demineralized Water Storage Tanks
                                                 N. Black-Start Generator
                                                 O. Utility Transformers



          Owner :
          NEXT POWER - Bulgaria &                               H
          GROUP FIVE - South Africa
                                                    J
                                                                        G
                                                                                     F
                                                       M      I                                    C
          Project Location :
          Mramor-Sofia, Bulgaria                                                E                             K
                                                                          D
                                                                                               B                  N
          Status :                                                                      A
          Construction Permit Has Been                                                                           O
          Obtained
                                                                                                        L














                                                 ENPRODE’s Responsibilities;

                                                 Conceptual  Engineering  and  Design.  Next  Power  is  a  Bulgarian
                                                 Independent Power Producer (IPP) company and Group Five (http://
                                                 www.g5.co.za)  is  a  South  Africa originated global construction group,
                                                 who is the EPC Contractor of Next Power Mramor Bulgaria Combined
                                                 Cycle Power Plant (CCPP) Project and 50% shareholder of Next Power,
                                                 as well.

                                                 The Project was mandated on a develop, build and commission basis
                                                 as a Combined Cycle Power Plant (CCPP) in Mramor, Bulgaria, 10 km
                                                 to the capital Sofia, with an estimated installed capacity of 115 MW.
                                                 The total power generation capacity of the plant is based on 2x44MW
                                                 output from the 2 Gas Turbine Generators (GTG) and 27 MW from a
                                                 Steam Turbine Generator (STG), which was driven by steam that is
                                                 to be generated by 2 vertical- type Heat Recovery Steam Generators
                                                 (HRSG) utilizing the waste heat coming from the exhaust of the 2 Gas
                                                 Turbines (GT). The plant also accommodated an Air Cooled Condenser
                                                 (ACC), a Natural Gas Compressor Station, a Water Treatment Plant, a
                                                 220 kV Switchyard and Transformers, Single fuel natural gas was used
                                                 as fuel to run the Power Plant to generate power on base load.
