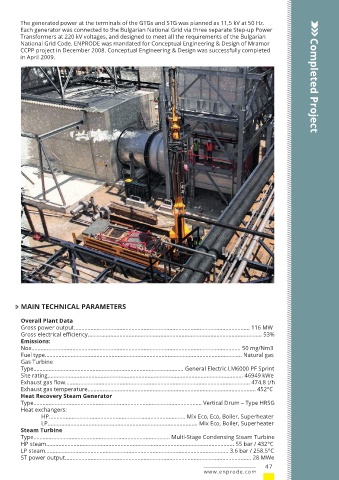

The generated power at the terminals of the GTGs and STG was planned as 11,5 kV at 50 Hz.
        Each generator was connected to the Bulgarian National Grid via three separate Step-up Power
        Transformers at 220 kV voltages, and designed to meet all the requirements of the Bulgarian
        National Grid Code. ENPRODE was mandated for Conceptual Engineering & Design of Mramor
        CCPP project in December 2008. Conceptual Engineering & Design was successfully completed
        in April 2009.                                                                                        Completed Project




















































        MAIN TECHNICAL PARAMETERS

        Overall Plant Data
        Gross power output.................................................................................................................... 116 MW
        Gross electrical efficiency................................................................................................................... 53%
        Emissions:
        Nox.......................................................................................................................................... 50 mg/Nm3
        Fuel type.................................................................................................................................. Natural gas
        Gas Turbine
        Type................................................................................................... General Electric LM6000 PF Sprint
        Site rating................................................................................................................................. 46949 kWe
        Exhaust gas flow.......................................................................................................................... 474.8 t/h
        Exhaust gas temperature............................................................................................................... 452°C
        Heat Recovery Steam Generator
        Type............................................................................................................... Vertical Drum – Type HRSG
        Heat exchangers:
                HP.......................................................................................... Mix Eco, Eco, Boiler, Superheater
                LP................................................................................................... Mix Eco, Boiler, Superheater
        Steam Turbine
        Type.......................................................................................... Multl-Stage Condensing Steam Turbine
        HP steam............................................................................................................................ 55 bar / 432°C
        LP steam......................................................................................................................... 3.6 bar / 258.5°C
        ST power output........................................................................................................................... 28 MWe
