P. 41

L

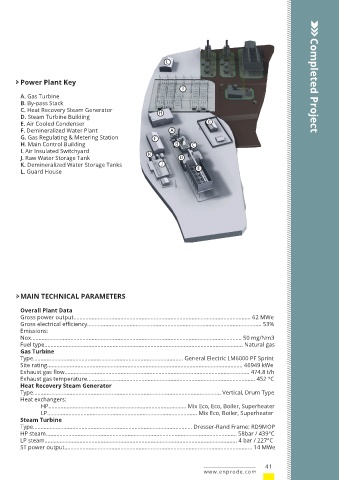

        Power Plant Key
                                                                 I                                            Completed Project
        A. Gas Turbine
        B. By-pass Stack
        C. Heat Recovery Steam Generator                 H
        D. Steam Turbine Building
        E. Air Cooled Condenser                                           G
        F. Demineralized Water Plant                         A
        G. Gas Regulating & Metering Station           F
        H. Main Control Building                               B     C
        I. Air Insulated Switchyard                  K
        J. Raw Water Storage Tank                               D
        K. Demineralized Water Storage Tanks              J
        L. Guard House                                                E

























        MAIN TECHNICAL PARAMETERS

        Overall Plant Data
        Gross power output..................................................................................................................... 62 MWe
        Gross electrical efficiency................................................................................................................... 53%
        Emissions:
        Nox........................................................................................................................................... 50 mg/Nm3
        Fuel type................................................................................................................................... Natural gas
        Gas Turbine
        Type................................................................................................... General Electric LM6000 PF Sprint
        Site rating................................................................................................................................. 46949 kWe
        Exhaust gas flow.......................................................................................................................... 474.8 t/h
        Exhaust gas temperature............................................................................................................... 452 °C
        Heat Recovery Steam Generator
        Type............................................................................................................................ Vertical, Drum Type
        Heat exchangers:
               HP........................................................................................... Mix Eco, Eco, Boiler, Superheater
               LP................................................................................................... Mix Eco, Boiler, Superheater
        Steam Turbine
        Type......................................................................................................... Dresser-Rand Frame: RD9MOP
        HP steam.............................................................................................................................. 58bar / 439°C
        LP steam............................................................................................................................... 4 bar / 227°C
        ST power output............................................................................................................................ 14 MWe
