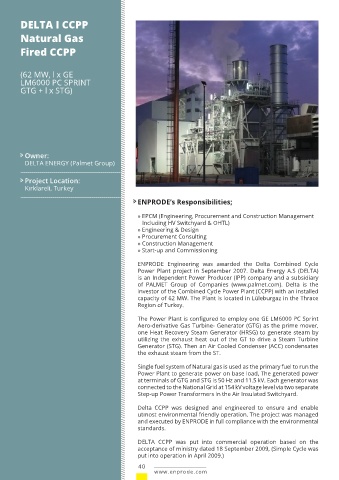

DELTA I CCPP

        Natural Gas

        Fired CCPP



        (62 MW, l x GE
        LM6000 PC SPRINT
        GTG + l x STG)












          Owner:
          DELTA ENERGY (Palmet Group)


          Project Location:
          Kırklareli, Turkey

                                                 ENPRODE’s Responsibilities;

                                                 » EPCM (Engineering, Procurement and Construction Management
                                                    Including HV Switchyard & OHTL)
                                                 » Engineering & Design
                                                 » Procurement Consulting
                                                 » Construction Management
                                                 » Start-up and Commissioning

                                                 ENPRODE  Engineering  was  awarded  the  Delta  Combined  Cycle
                                                 Power Plant  project in  September 2007.  Delta Energy A.S  (DELTA)
                                                 is an Independent Power Producer (IPP) company and a subsidiary
                                                 of PALMET Group of Companies (www.palmet.com). Delta is the
                                                 investor of the Combined Cycle Power Plant (CCPP) with an installed
                                                 capacity of 62 MW. The Plant is located in Lüleburgaz in the Thrace
                                                 Region of Turkey.

                                                 The Power Plant is configured to employ one GE LM6000 PC Sprint
                                                 Aero-derivative Gas Turbine- Generator (GTG) as the prime mover,
                                                 one Heat Recovery Steam Generator (HRSG) to generate steam by
                                                 utilizing  the exhaust heat out of the GT to drive a Steam  Turbine
                                                 Generator (STG). Then an Air Cooled Condenser (ACC) condensates
                                                 the exhaust steam from the ST.


                                                 Single fuel system of Natural gas is used as the primary fuel to run the
                                                 Power Plant to generate power on base load, The generated power
                                                 at terminals of GTG and STG is 50 Hz and 11.5 kV. Each generator was
                                                 connected to the National Grid at 154 kV voltage level via two separate
                                                 Step-up Power Transformers in the Air Insulated Switchyard.
                                                 Delta  CCPP  was designed  and  engineered  to  ensure  and  enable
                                                 utmost environmental friendly operation. The project was managed
                                                 and executed by ENPRODE in full compliance with the environmental
                                                 standards.

                                                 DELTA CCPP  was  put  into  commercial operation  based  on  the
                                                 acceptance of ministry dated 18 September 2009, (Simple Cycle was
                                                 put into operation in April 2009.)
