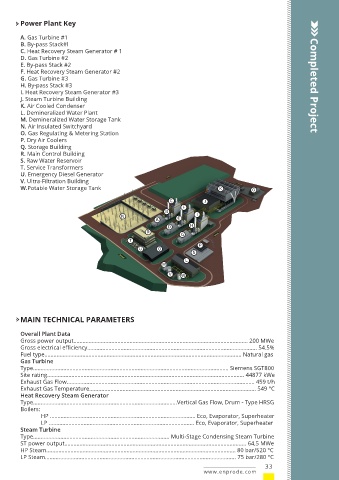

Power Plant Key

        A. Gas Turbine #1
        B. By-pass Stack#l
        C. Heat Recovery Steam Generator # 1
        D. Gas Turbine #2
        E. By-pass Stack #2
        F. Heat Recovery Steam Generator #2
        G. Gas Turbine #3
        H. By-pass Stack #3                                                                                   Completed Project
        I. Heat Recovery Steam Generator #3
        J. Steam Turbine Building
        K. Air Cooled Condenser
        L. Demineralized Water Plant
        M. Demineralized Water Storage Tank
        N. Air Insulated Switchyard
        O. Gas Regulating & Metering Station
        P. Dry Air Coolers
        Q. Storage Building
        R. Main Control Building
        S. Raw Water Reservoir
        T. Service Transformers
        U. Emergency Diesel Generator
        V. Ultra-Filtration Building
        W.Potable Water Storage Tank                                          K           O

                                                             C           J
                                                                 F
                                                           B
                                            N                         I
                                                        A      E
                                                            D       H
                                                     R
                                                                 G
                                              T
                                                                       P
                                                  U      Q
                                                                     S
                                                                  L
                                                          M

                                                            V    W







        MAIN TECHNICAL PARAMETERS

        Overall Plant Data
        Gross power output................................................................................................................... 200 MWe
        Gross electrical efficiency................................................................................................................ 54.5%
        Fuel type.................................................................................................................................. Natural gas
        Gas Turbine
        Type................................................................................................................................. Siemens SGT800
        Site rating.................................................................................................................................. 44877 kWe
        Exhaust Gas Flow............................................................................................................................ 459 t/h
        Exhaust Gas Temperature.............................................................................................................. 549 °C
        Heat Recovery Steam Generator
        Type...............................................................................................Vertical Gas Flow, Drum - Type HRSG
        Boilers:
               HP ................................................................................................ Eco, Evaporator, Superheater
               LP ................................................................................................ Eco, Evaporator, Superheater
        Steam Turbine
        Type.......................................................................................... Multi-Stage Condensing Steam Turbine
        ST power output........................................................................................................................ 64,5 MWe
        HP Steam............................................................................................................................. 80 bar/520 °C
        LP Steam.............................................................................................................................. 75 bar/280 °C
