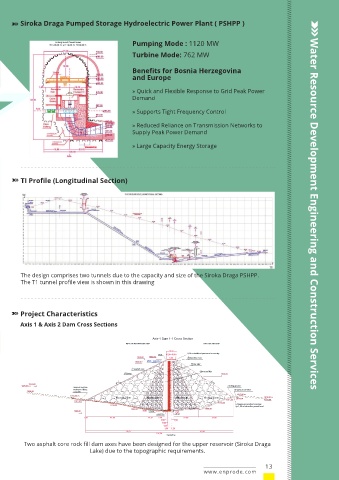

Siroka Draga Pumped Storage Hydroelectric Power Plant ( PSHPP )


                                               Pumping Mode : 1120 MW

                                               Turbine Mode: 762 MW

                                               Benefits for Bosnia Herzegovina
                                               and Europe

                                               » Quick and Flexible Response to Grid Peak Power
                                               Demand

                                               » Supports Tight Frequency Control

                                               » Reduced Reliance on Transmission Networks to
                                               Supply Peak Power Demand

                                               » Large Capacity Energy Storage





        TI Profile (Longitudinal Section)                                                                     Water Resource Development Engineering and Construction Services




















        The design comprises two tunnels due to the capacity and size of the Siroka Draga PSHPP.
        The T1 tunnel profile view is shown in this drawing





        Project Characteristics
        Axis 1 & Axis 2 Dam Cross Sections


                                                       Axis-1 Dam 1-1 Cross Section
                                             WET OR RESERVOIR SIDE       DRY OR AIR SIDE
                                                            10,00
                                                         crest  5,00 5,00  0,30 m stabilized pavement or overlay
                                                 1050,00  1050,30  8,00  3A transition zone
                                                1049,00  MWL: 1048,00 m
                                                                    2A fine filter
                                               1 asphalt core
                                                                       2B coarse filter
                                             R riprap                          1034,50
                                           2                               1,5
           1025,00                        1                                 1
         1025,00 m                                                               existing ground
                           reservoir surface
                           waterproof lining                                       stripping excavation
          1020,00          concrete
                                                                                    1017,00 m
                          1015,00 m
                                          4B coarse rock fill  4A fine rock fill  4A fine rock fill  4B coarse rock fill  1014,94  1015,00 m
                                                                                1015,00       1014,00
                           1012,62                                            1010,00
                                        1010,00                                     stripping excavation boundary
                                                                                    is 1,00 m below the ground level
                                               1005,00                   1005,00
                           1000,00                 0,30  talweg  1 1  1 1,30
                                                              1
                                                        concrete  cut off
                               1,30     47,95        22,32  2,20  22,50    32,89
                                                          1,20  2,20
                                                          1,50
                                                           0,60
                                                           1,50  1,20
                                             79,75                     57,59
                                                        137,34
                                                            Centerline
         Two asphalt core rock fill dam axes have been designed for the upper reservoir (Siroka Draga
                                 Lake) due to the topographic requirements.
